Equipped with 64 low-noise MEMS microphones. Visualize air leak locations in real time and display loss costs simultaneously. Best-in-class cost-performance acoustic imaging camera.
The AlgoLeak AL64 is a high-quality acoustic imaging camera Made in Japan. Equipped with 64 low-noise MEMS microphones and a wide bandwidth of 2 kHz to 96 kHz, it visualizes compressed air leak locations in real time. By simultaneously displaying loss costs on screen, you can instantly assess leak severity and efficiently prioritize repairs.
Weighing just 940g with a lightweight compact design, it can be operated with one hand. The 4.3-inch LCD touchscreen and up to 16x digital zoom allow you to accurately pinpoint leak locations in elevated or confined spaces from a safe distance. With 3 interchangeable batteries providing 10.5 hours of continuous operation, it is ready for full-day inspection rounds at large-scale factories.
Import the air leak data captured by AL64 into the free dedicated software "LEAK ANALYZER" and a complete inspection report — site photos, loss costs, leak locations — is automatically exported as PDF. Internal sharing and management briefings are ready to go in minutes.
Calculation parameters such as electricity rate, operating hours, and air compressor specifications (rated power, motor efficiency, etc.) can be configured in the software, allowing loss estimates tailored to each customer's plant conditions.
Key features
What's included in the report
3 steps to a finished report

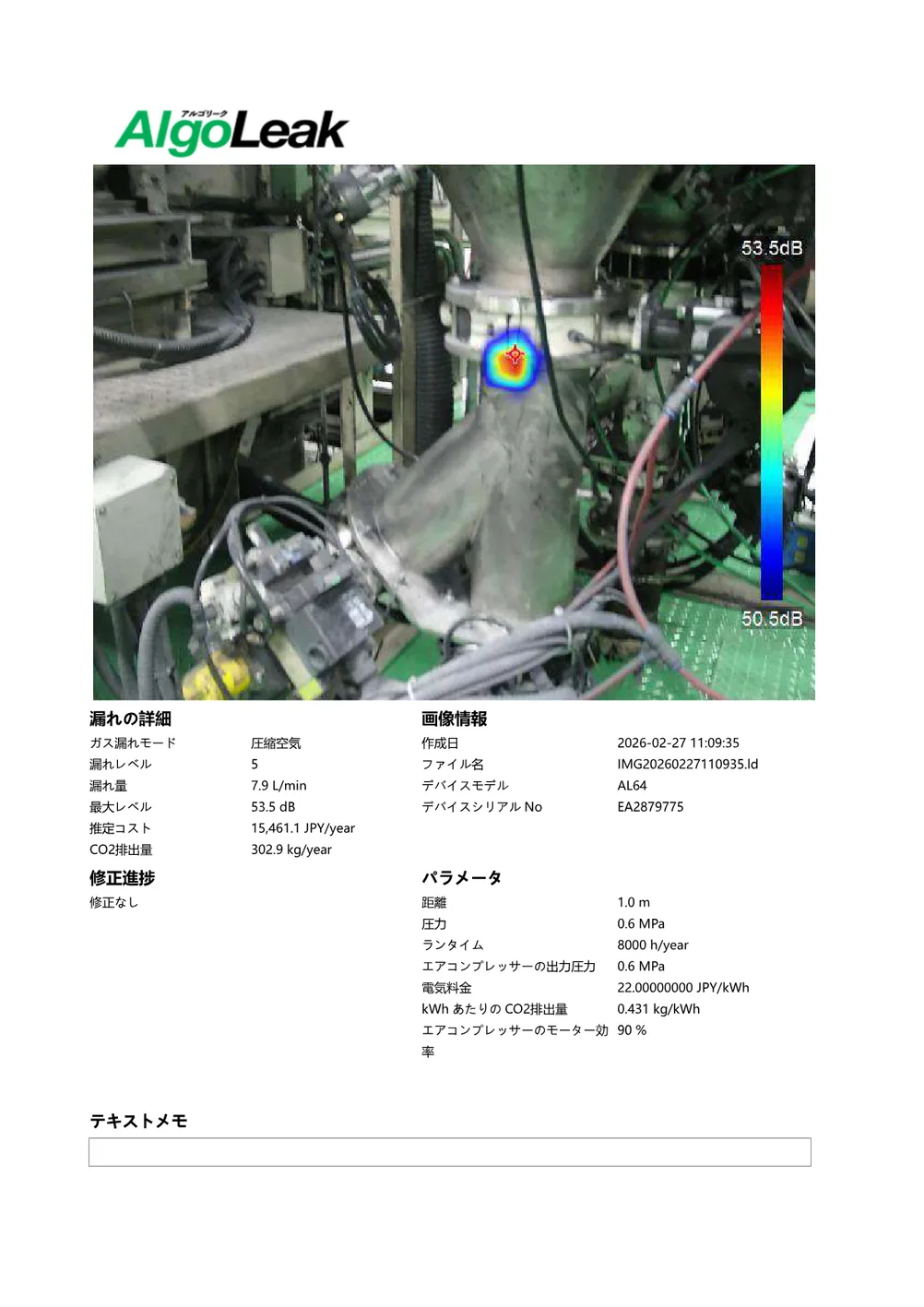

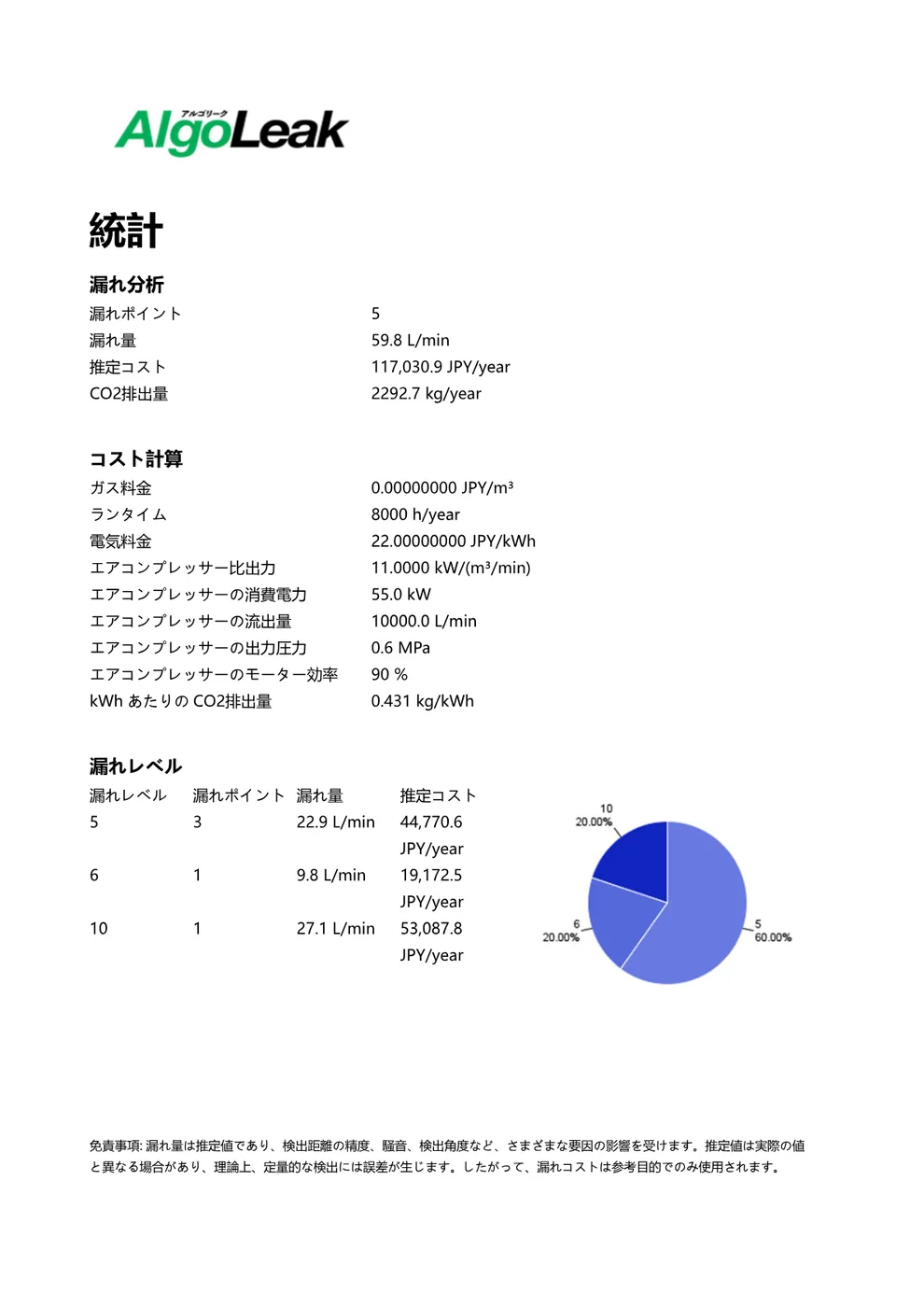

Sample leak report auto-generated by LEAK ANALYZER
An acoustic camera uses an array of microphones to analyze the direction of incoming sound and overlays the source location as a heatmap on the camera image, visualizing the source. By covering both audible and ultrasonic ranges, it instantly detects compressed-air leak sounds and partial discharge sounds from electrical equipment that the human ear cannot hear.
Adoption is growing rapidly in factory energy diagnostics and predictive maintenance. The decisive advantage over traditional acoustic inspection or soap-water testing is the ability to identify air leak locations in operating factories without contact or disassembly.
A high-performance model like ALGOLEAK AL64 covers a wide 0.3 m to 150 m detection range and can detect micro-leaks (>0.008 L/min @6bar). It dramatically shortens inspection time and delivers consistent inspection quality without depending on skilled operators.

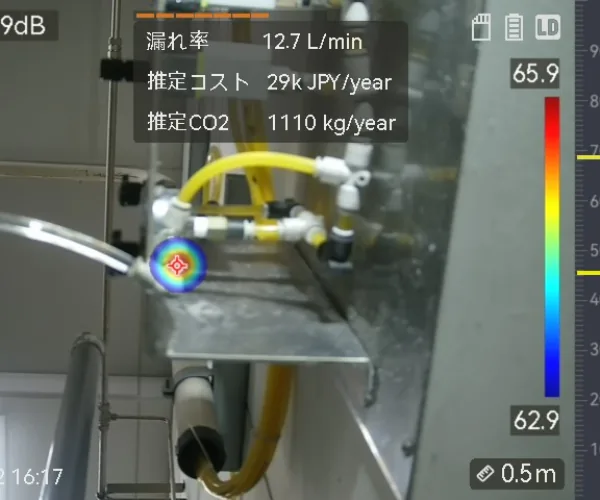

Visualize and rapidly identify air leaks from compressed air piping, fittings, and valves in real time. By adjusting the bandwidth, leaks can be accurately detected during production without being affected by production line noise. Simultaneous loss cost display enables on-the-spot repair prioritization and cost-effectiveness calculations.

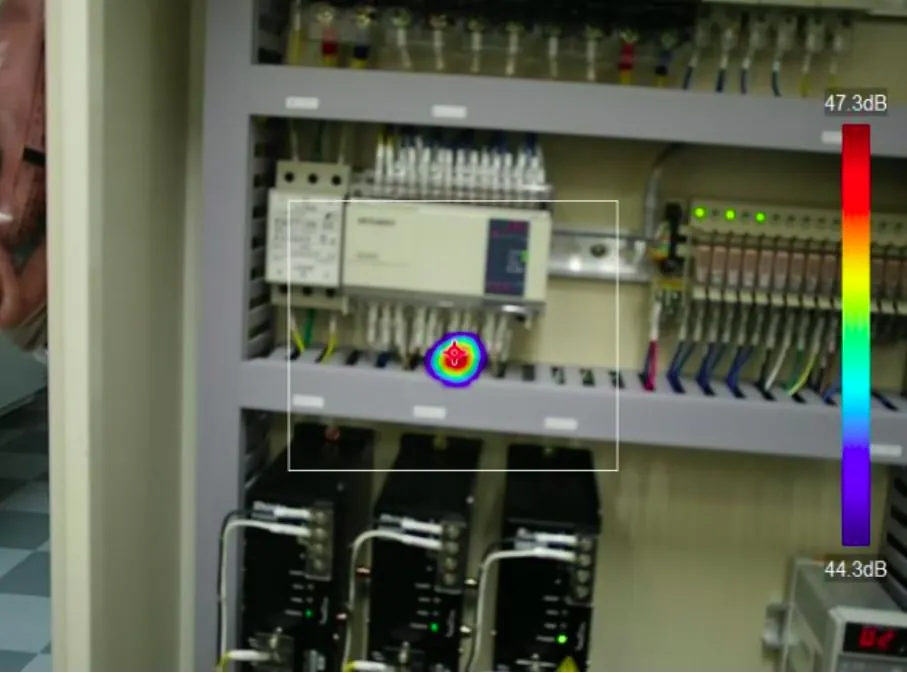

Automatically detect corona discharge, particle discharge, floating discharge, and surface discharge in high-voltage electrical equipment (50/60 Hz compatible). Safely identify discharge locations from a non-contact distance, contributing to early detection of insulation deterioration and prevention of power outage incidents. Ideal for routine inspections of substations and cubicles.
Accumulate data with the free software "LEAK ANALYZER" and compare periodic inspection results over time. Quantitatively verify leak volume changes and cost reductions before and after repairs. Automatic PDF report generation streamlines the preparation of management reports.

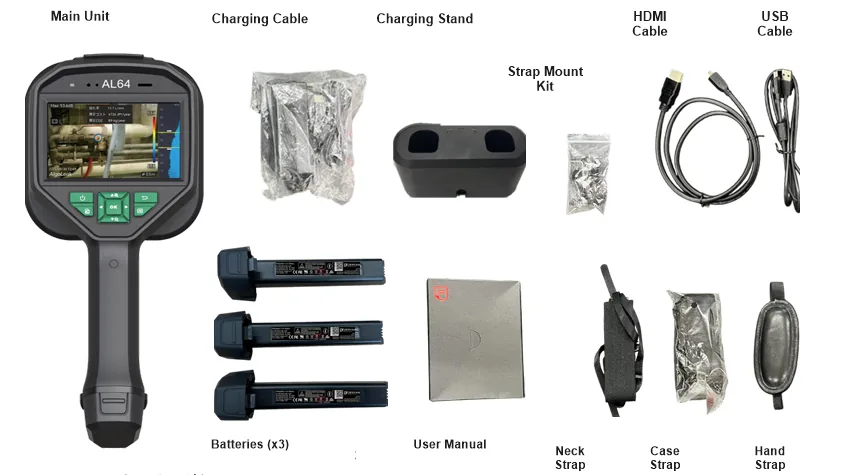

Every ALGOLEAK AL64 ships with everything you need to start inspecting compressed air leaks on day one: main unit, charging cable, battery charging stand, HDMI / USB cables, hand strap mount kit, three batteries, user manual, neck / case / hand straps, and a carrying case.
Ships with the microSD card already loaded in the main unit's slot.
It can detect air leaks from a minimum of 0.3 m up to a maximum of 150 m. Under 6 bar conditions, even minute leaks of 0.008 L/min or more can be detected from 0.5 m away.
Yes. The wide adjustable bandwidth from 2 kHz to 96 kHz allows you to avoid surrounding noise bands and focus on the ultrasonic range, enabling air leak detection even in noisy production environments.
With a 3-battery rotation, continuous use of approximately 10.5 hours (about 3.5 hours per battery) is possible. Full charging takes about 5 hours. It is sufficient for one day of patrol inspection.
No. The dedicated software "LEAK ANALYZER" is available free of charge. It supports inspection data viewing and automatic PDF report generation, with no additional fees.
We offer quotations and on-site equipment demonstrations. Please feel free to contact us.
