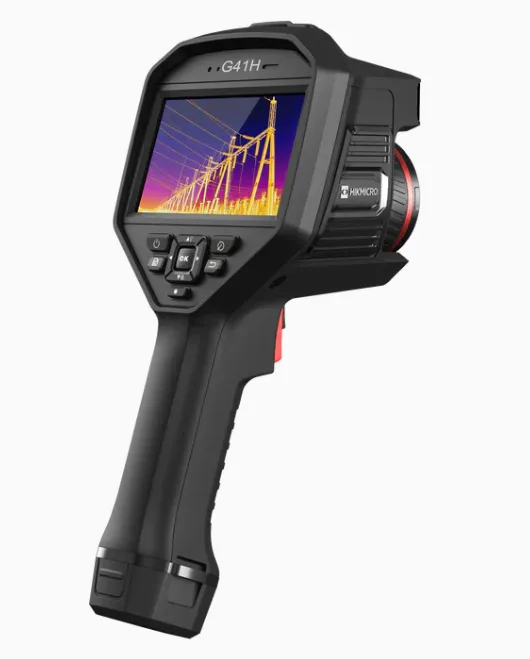

HM-G41H
The high-temperature variant of the G41. Supports ultra-high temperature measurement up to 2000°C, ideal for inspections in metalworking, casting, glass manufacturing, and other high-temperature environments.
Key Features
Up to 2000°C Measurement
Supports ultra-high temperature measurement up to 2000°C, ideal for monitoring metalworking, casting, and glass manufacturing processes.
5 Quick Focus Modes
Equipped with 5 focus modes for fast and accurate focusing across various shooting scenarios.
Swappable Battery System
Three swappable batteries provide 4 hours each, totaling 12 hours of operation for extended fieldwork.
Built-in Laser Rangefinder
Integrated laser rangefinder accurately measures distance to the target, supporting efficient inspections.
50Hz High Frame Rate
50Hz high frame rate delivers smooth thermal video, capturing temperature changes in moving targets.
3 Add-on Lenses
Supports 3 interchangeable lenses for flexible shooting from wide-angle to telephoto.
Specifications
| IR Resolution | 480 x 360 |
|---|---|
| SuperIR Resolution | 960 x 720 |
| Field of View (FOV) | 18.7° x 14° |
| IFOV | 0.68 mrad |
| Temperature Range | -20°C to 2000°C |
| Temperature Accuracy | ±2°C or ±2% |
| Frame Rate | 50Hz |
| NETD | <35 mK |
| Min. Focus Distance | 0.3m |
| Focus Mode | 5 Quick Focus Modes |
| Battery Life | 4 hours x 3 |
| Display | 4.3-inch LCD Touchscreen |
| Visual Camera | 3264 x 2448 (8MP) |
| LED Light | ○ |
| Laser Pointer | ○ |
| Video Output | ○ |
| Included Software | HIKMICRO Analyzer |
| Wi-Fi | ◯ |
