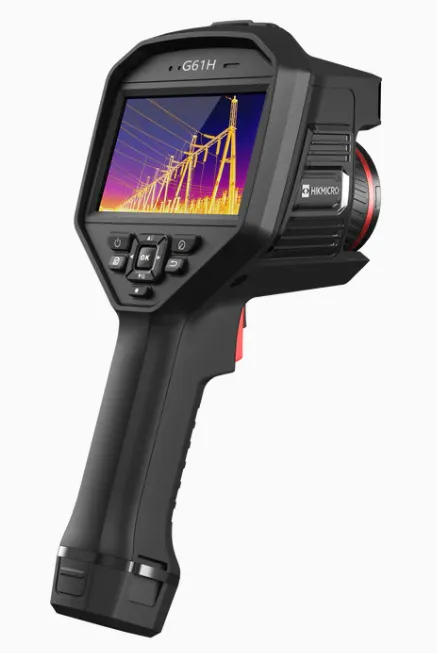

The G Series flagship with the highest 640x480 IR resolution sensor. Delivers ultra-high definition thermal images that capture even the finest temperature differences, meeting the most demanding industrial inspection requirements.
Equipped with 5 focus modes for fast and accurate focusing across various shooting scenarios.
Top-class 640x480 IR sensor delivers ultra-high definition thermal images, clearly capturing the finest temperature differences.
Three swappable batteries provide 4 hours each, totaling 12 hours of operation for extended fieldwork.
Integrated laser rangefinder accurately measures distance to the target, supporting efficient inspections.
Connect to the HIKMICRO Viewer app via Wi-Fi for real-time image transfer, analysis, and sharing.
Supports 3 interchangeable lenses for flexible shooting from wide-angle to telephoto.
| IR Resolution | 640 x 480 |
|---|---|
| SuperIR Resolution | 1280 x 960 |
| Field of View (FOV) | 25° x 19° |
| IFOV | 0.68 mrad |
| Temperature Range | -20°C to 650°C |
| Temperature Accuracy | ±2°C or ±2% |
| Frame Rate | 50Hz |
| NETD | <35 mK |
| Min. Focus Distance | 0.3m |
| Focus Mode | 5 Quick Focus Modes |
| Battery Life | 4 hours x 3 |
| Display | 4.3-inch LCD Touchscreen |
| Visual Camera | 3264 x 2448 (8MP) |
| LED Light | ○ |
| Laser Pointer | ○ |
| Video Output | ○ |
| Included Software | HIKMICRO Analyzer |
From recommending the optimal model for your site to full implementation support, we provide one-stop service.
