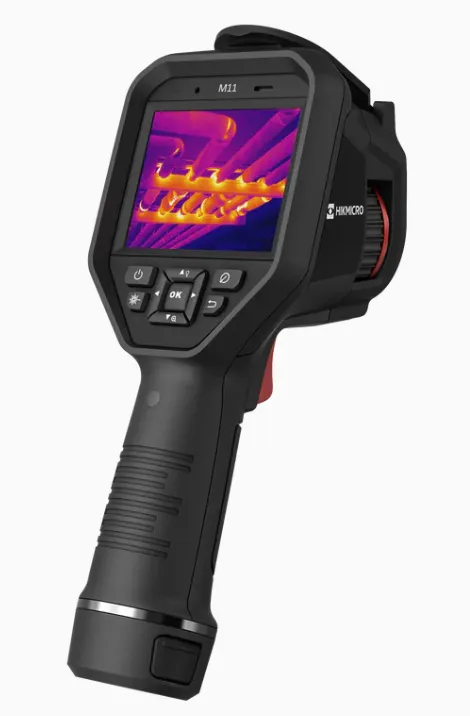

An advanced infrared thermal camera with full analysis functions. With a minimum resolution of 0.04°C, it detects even the slightest temperature differences in targets. Provides high-quality images and smooth video at 25Hz frame rate.
Focus ring adjustment allows you to get as close as 0.1m to the target for sharp and accurate image capture.
Two swappable lithium-ion batteries provide up to 12 hours of operation, supporting extended inspection work.
Select from Thermal, Fusion, Optical, and PIP modes to match your application for clear, informative images.
Add text or voice annotations to images for improved survey efficiency and productivity.
Transfer photos and videos via the HIKMICRO Viewer app. Analyze, share, and generate reports in real time.
IP54-rated dust and water resistance with 2-meter drop protection for harsh working environments.
| IR Resolution | 192 x 144 |
|---|---|
| SuperIR Resolution | 384 x 288 |
| Field of View (FOV) | 18.8° x 14.1° |
| IFOV | 1.74 mrad |
| Temperature Range | -20°C to 550°C |
| Temperature Accuracy | ±2°C or ±2% |
| Frame Rate | 25Hz |
| NETD | <40 mK |
| Min. Focus Distance | 0.1m |
| Focus Mode | Manual Focus |
| Battery Life | 6 hours x 2 |
| Display | 3.5-inch LCD Touchscreen |
| Visual Camera | 3264 x 2448 (8MP) |
| LED Light | ○ |
| Laser Pointer | ○ |
| Video Output | ○ |
| Included Software | HIKMICRO Analyzer |
