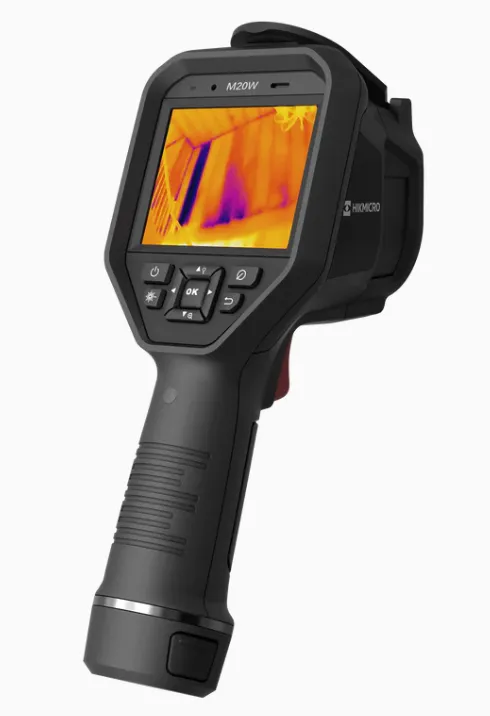

A mid-range M Series model with 256x192 high-resolution IR sensor and wide field of view. Scan large areas at once with focus-free design for intuitive operation.
No focus adjustment needed -- simply point and instantly capture clear thermal images, greatly simplifying on-site operation.
256x192 high-resolution IR sensor detects fine temperature differences. SuperIR technology delivers 512x384 equivalent sharp images.
Ultra-wide-angle lens scans large areas in a single view, significantly reducing inspection time for large equipment and buildings.
Add text or voice annotations to images for improved survey efficiency and productivity.
Transfer photos and videos via the HIKMICRO Viewer app. Analyze, share, and generate reports in real time.
IP54-rated dust and water resistance with 2-meter drop protection for harsh working environments.
| IR Resolution | 256 x 192 |
|---|---|
| SuperIR Resolution | 512 x 384 |
| Field of View (FOV) | 50.0° x 37.2° |
| IFOV | 1.74 mrad |
| Temperature Range | -20°C to 550°C |
| Temperature Accuracy | ±2°C or ±2% |
| Frame Rate | 25Hz |
| NETD | <40 mK |
| Min. Focus Distance | 0.1m |
| Focus Mode | Focus-Free |
| Battery Life | 6 hours x 2 |
| Display | 3.5-inch LCD Touchscreen |
| Visual Camera | 3264 x 2448 (8MP) |
| LED Light | ○ |
| Laser Pointer | ○ |
| Video Output | ○ |
| Included Software | HIKMICRO Analyzer |
From recommending the optimal model for your site to full implementation support, we provide one-stop service.
