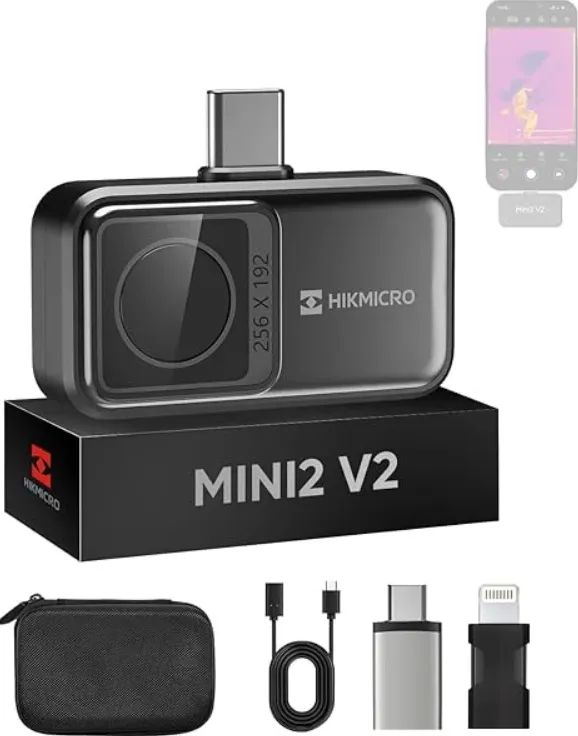

Simply plug into your smartphone for instant infrared thermography. With 256x192 resolution and -20 to 400°C temperature range, the HIKMICRO Viewer app handles analysis and report creation.
Simply plug into your smartphone via USB-C for instant use. No additional display needed.
High-definition IR imaging detects subtle temperature differences for early detection of equipment issues.
No focus adjustment needed for quick scanning. Easy for anyone to operate.
HIKMICRO Viewer app provides real-time display, analysis, and report creation in one workflow.
Pocket-sized for easy portability. Inspect anytime, anywhere.
-20°C to 400°C covers daily inspections to industrial applications.
| IR Resolution | 256 x 192 |
|---|---|
| Temperature Range | -20°C to 400°C |
| Temperature Accuracy | ±2°C or ±2% |
| Frame Rate | 25Hz |
| Focus Mode | Focus-Free |
| Connection | USB Type-C |
| Compatible Devices | Android / iOS |
| Weight | Approx. 30g |
| SuperIR Resolution | 対応 |
| Field of View (FOV) | 50° × 37.2° |
| NETD | <40 mK |
| Display | スマホ画面 |
| Battery Life | スマホ給電(本体バッテリーなし) |
| IP Rating | IP40 |
| Drop Resistance | 1m落下耐性 |
| Warranty | 3年保証 |
From recommending the optimal model for your site to full implementation support, we provide one-stop service.
